I got two stencils from them so far (Ele) for different 100x100 mm pcbs without frame (frame seems to be the edges folded up and out with 2 bends to make it stiffer… I have a jig, so don’t need/want that).
I’d even go so far as to say that a frame will be bad if you want to do it free-flying on a desk by taping the pcb down and the stencil as well (so you can lift it up on a tape-hinge without loosing alignment).
The stencils I ordered in 20x25 cm and had both front and back side by side with a space between the pcbs of ~5 mm (when you aligned the pcbs to fit the stenciled pads).
The thickness varies… one has got 0.15 mm and the other 0.17 mm. I didn’t see an option that I could specify the thickness when ordering the pcbs… for ordering stencils only it’s adjustable.
Naturally I wouldn’t have a clue what thickness I would need. I see a question coming up on the forums about that…
The stencil quality is good and they work. Wouldn’t have thought that some of the smaller pads would actually disperse paste to the pcb, but they did.
The frameless stencil is wrapped for transport onto a thin board of HDwood that seems to be a broken up pieces of the stuff they put under pcbs for milling/drilling.
The thing I’m not so fond of (but don’t have the know-how yet to know it better or what I want) is that they seem to adjust the pad sizes and formats how they see fit.
If you got a thermal pad (for example a simple SO-8 PowerPAK with a single solder pad for that), they did divide that into 4 smaller pads, automatically, no questions asked.
I didn’t measure it yet (but will), but I think they adjust stencil pad size from paste mask size downwards a bit.
For one of the pcbs I already did that in KiCAD before making the gerbers… for the other I can’t remember.
Just be aware that stuff like this can happen… if you’re a noob that might be good, if you’re a pro that means you just lost control of your process.
I’ll post a thread in projects I guess on this with some pics when I reflow again…
Should be in 1-2 weeks.

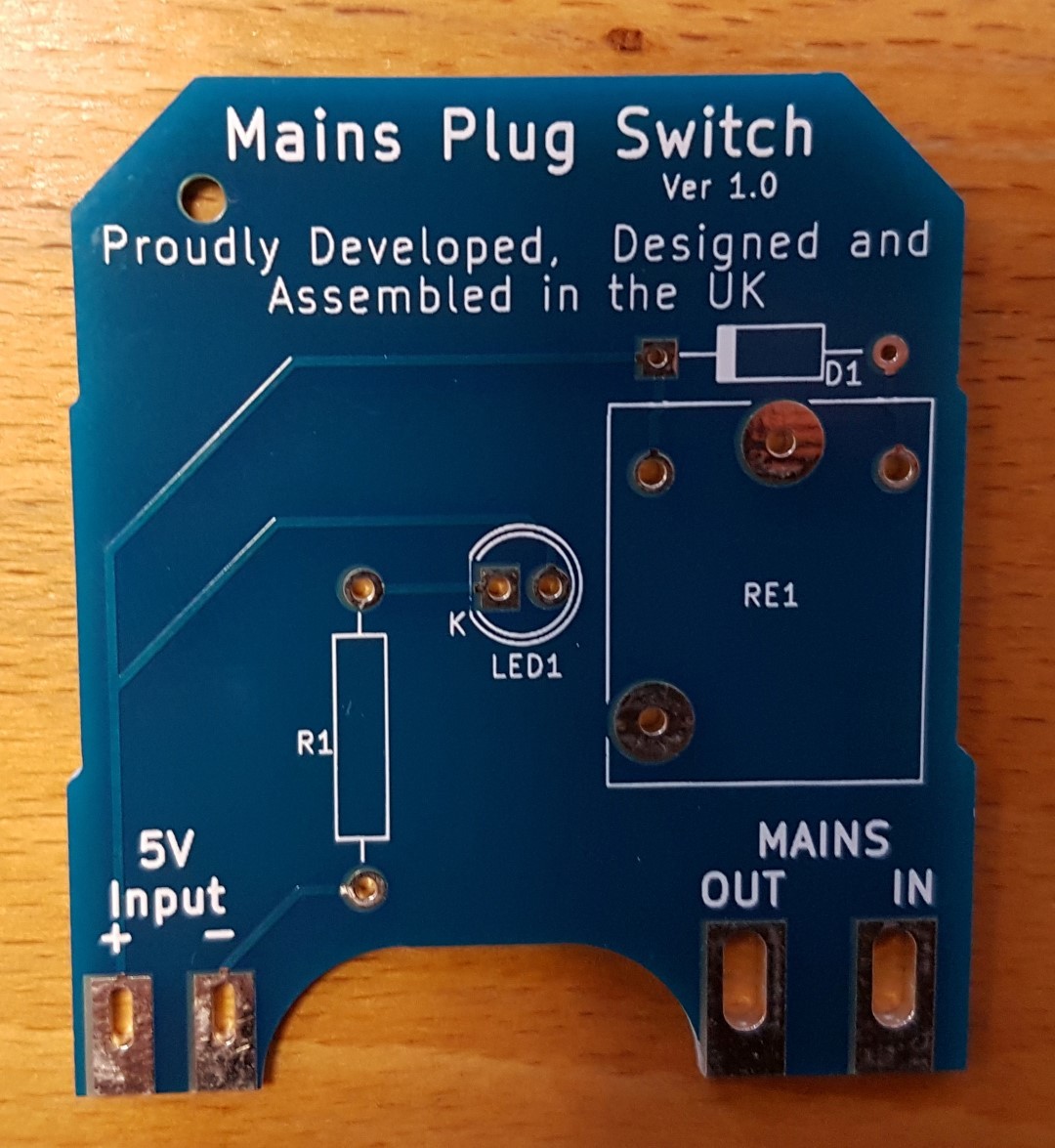

PS: also don’t use arcs/circles on Silkscreen with them (Ele)… they won’t print with certain of their fabs (they seem to use several fabs to make pcbs), one of them can’t print circles/arcs on silkscreen and does adjust soldermask how they see fit.
PPS: I didn’t have a need yet to communicate the automatic processes that seem to be running there and modify my work, but I will have to in future. Definitely easier with a local shop, but the price is magnitude(s) higher then naturally too.
