How do I see ratnets specific to a component.

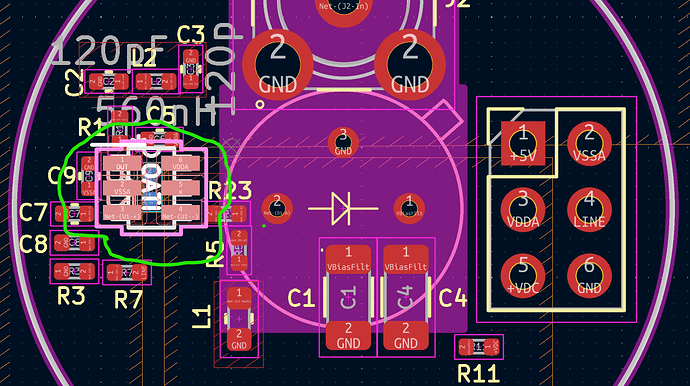

Below is the board file with ratnets off.
What I would like to see is when I click on the component (Highlighted in Green),I need to see only the ratnets connected to that component.
This will make my routing easy.
May I know how to do that.
Regards
HARI
You can use the local ratsnest tool or the nets panel.
Disable the ratsnest view (
) in the left toolbar, then use the local ratsnest tool (
) in the righthand toolbar to turn the ratsnests for a certain component or pad on or off again.
Or use the nets tab in the appearance panel (top right) to select nets to show ratsnest lines for nets by name:
