Show Multiple Selected nets trace lengths

Layout
1

How can i list multiple selected net traces lengths in pcb?

  • OPTION -1*

For example while i am designing how can i see trace lengths in parallel interface nets for each trace?
Step 1;
To Select nets, from keyboard Click U, than click U again.
Step 2,
Right click, Show Selected nets length as list on pop up window.

image1920×1200 275 KB

Show selected List as below pop up window

Step 3,
If any net trace is so long or so short, to fix trace lenght;
Use; Top Menu: Route → Tune length (7)

image1477×1183 153 KB

OPTION -2

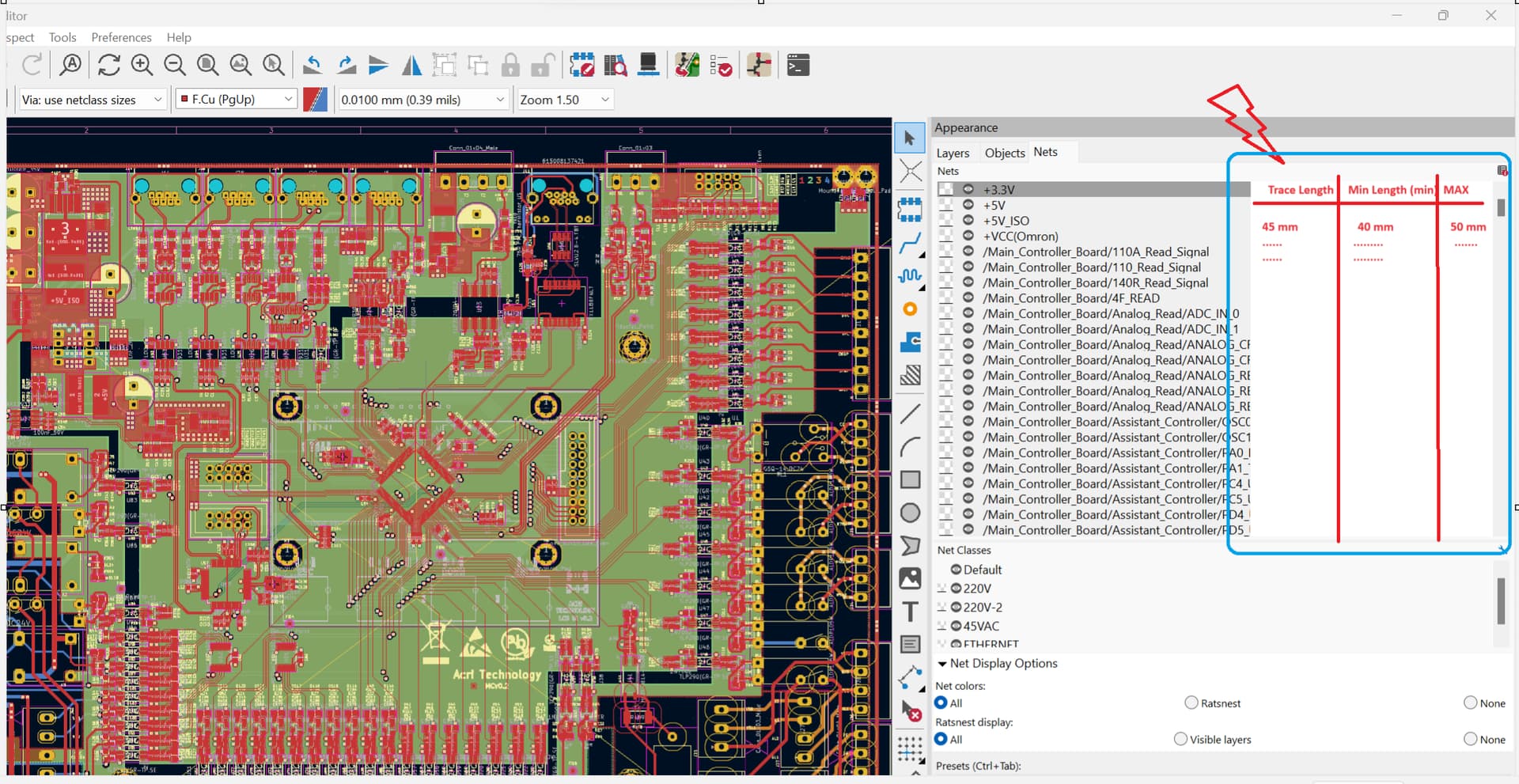

Or Can we see netclasses trace lengths for each nets as a list;

image1920×991 317 KB

2

Does this Inspect → Net Inspector do what you want?

image2522×1492 212 KB

2 Likes
3

Thank you for helping,
This tool is enough for my purpose. :+1:

So in addition Can we filter as net classes? :face_with_monocle:

4

The net inspector has a filter for net names, but apparently not for net classes. It is a bit of a missed opportunity to first go though the trouble of setting up net classes and assigning nets to them, and then not (yet) being able to show them as a collection in the net inspector.

I quite like the idea and think it is worth a feature request on gitlab.

1 Like
5

@JeffYoung
What do you think about adding a netclass group filter to Net Inspector?

6

I haven’t been in that code in years, but I hear it’s gotten quite crufty and is due for a rewrite. It’d be good to have a feature request in gitlab for when that day does arrive…

1 Like
7
2 Likes
8
