Pads in board edges

raspdroid · January 23, 2018, 11:31pm

Hello,

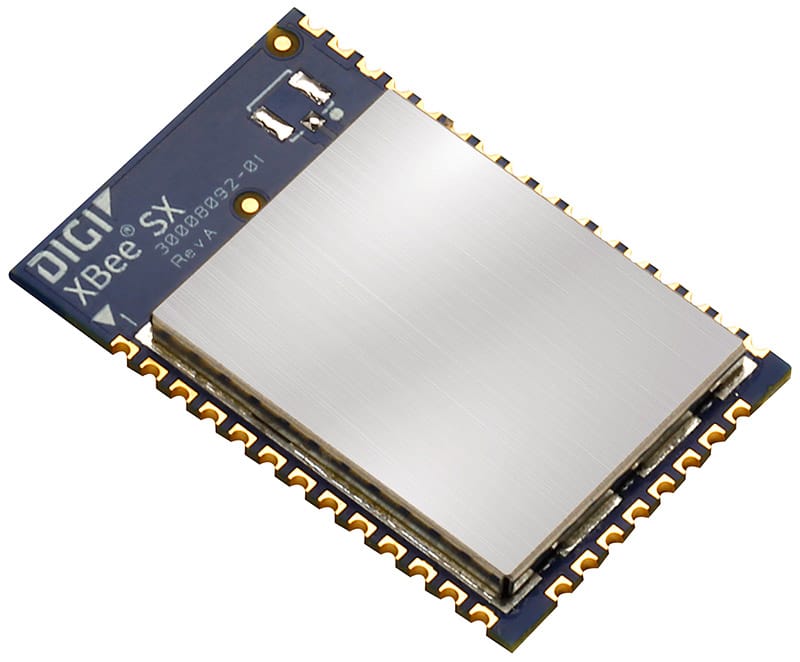

How can I make pads similar to those of these cards?

Best regards

dchisholm · January 23, 2018, 11:43pm

Search this Forum (and other web sites related to PCB fabrication) for the term “castellation” or “castellate”.

Not all board fabricators support this technique.

Dale

PaulF8080 · January 24, 2018, 7:46am

raspdroid · January 24, 2018, 11:47am

Thanks guys!

I have seen someone web pages like this -> http://prototypepcb.com/castellated-holes/

Also the Hack project to Kicad, very interesant.

Best regards

raspdroid · January 25, 2018, 9:43am

I did it with a single pad because I do not have space. Now I have to verify that the pcb shop can do it.
