I’m trying to use VeeCAD for stripboard layout and want to bring in all my components from KiCad. I’ve created a “parts bin” schematic in KiCad 7 with all my usual components (resistors, capacitors, diodes, transistors, modules, etc.), leaving them unconnected.
The problem is:
- VeeCAD will only open netlists exported as OrCAD PCB2, not KiCad’s legacy netlist.
- When I export as OrCAD PCB2, all components appear identical in VeeCAD — the footprint/package information is lost.
I am ideally trying to:
- Recognize different component types (resistor, capacitor, transistor, IC, etc.)
- Preserve some “footprint” info so parts aren’t all identical in VeeCAD
Can anyone help explain what I’m doing wrong/how to fix?
Thank you
I doubt if there are any VeeCAD users here but I could be surprised.
A search shows that VeeCAD has its own forum: VeeCAD - Index Maybe you’ve already posted there.
Good luck.
1 Like
Can you post an example netlist you have exported from KiCad?

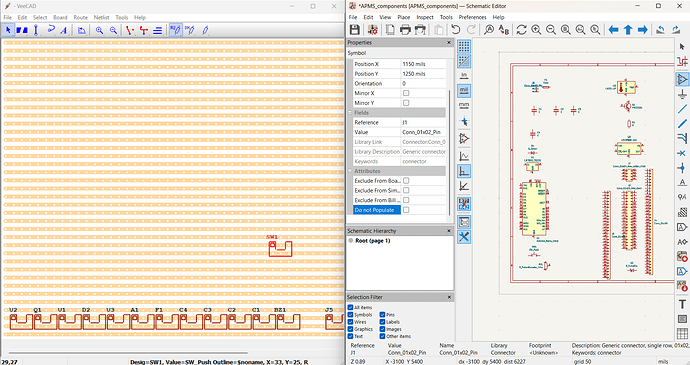

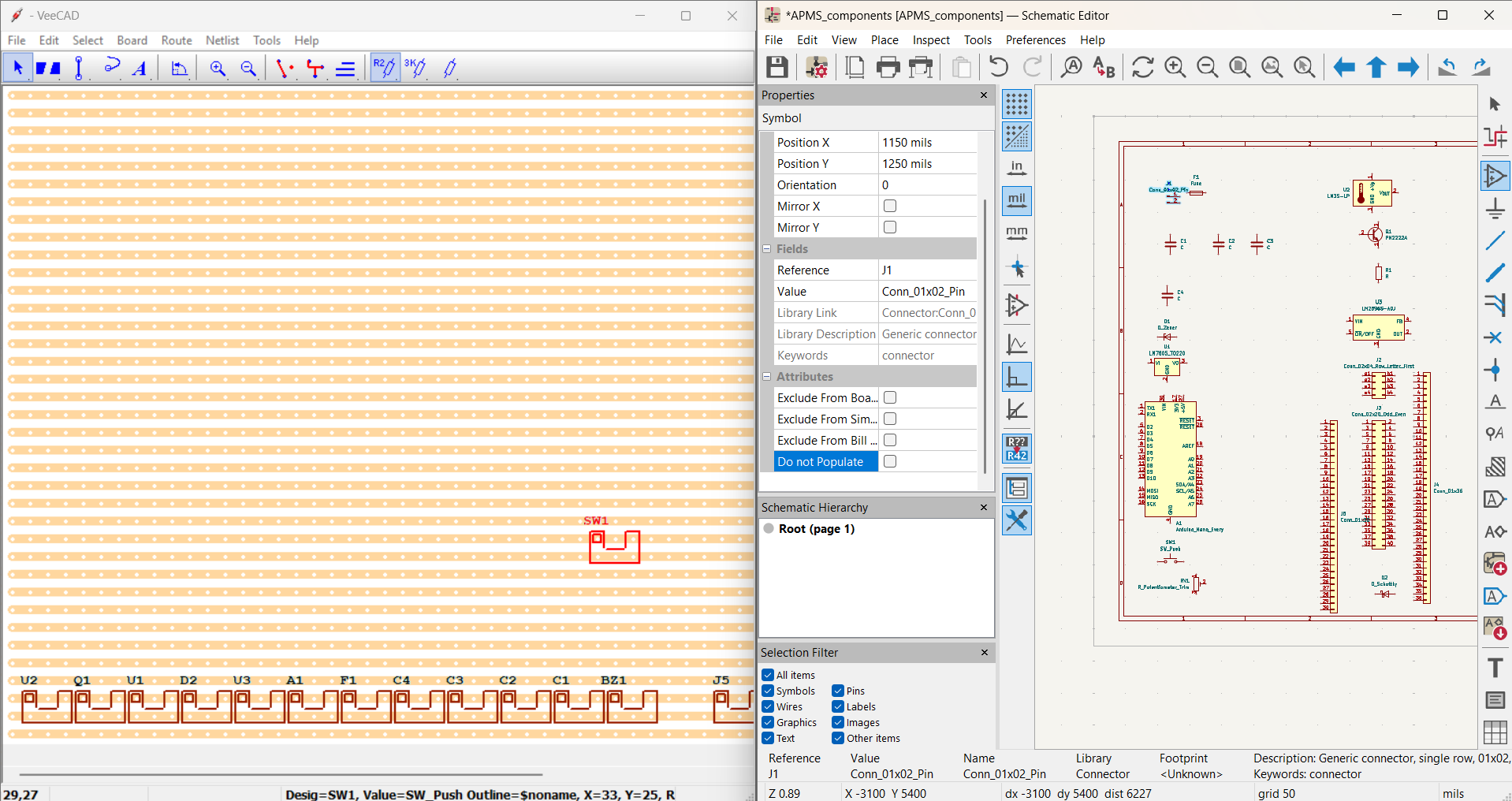

@craftyjon this is the netlist that it produces as opened in notepad:
