Heads Up: EESchema GAL conversion

Hi,

Starting today, the schematic editor also uses GAL for rendering, so among other things it should be significantly faster on hi-DPI displays.

Obviously this also means more potential for bugs. The last Windows nightly before the switchover is r11329.3024ded91, the new version should arrive later today.

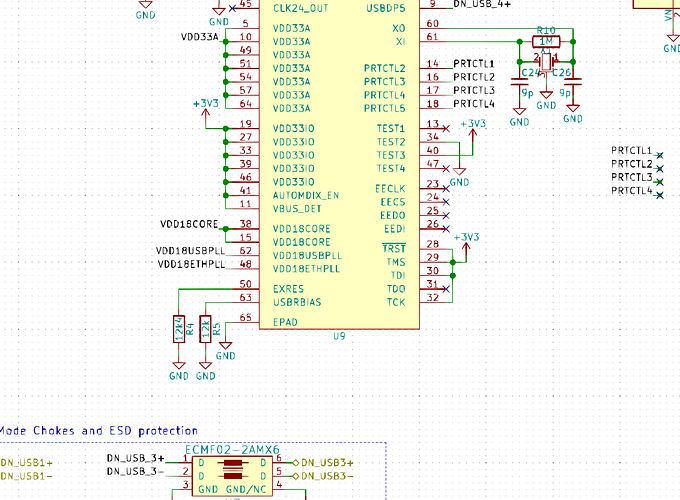

If you find a rendering bug in the schematic editor, please check that you are using a version after the switch, and report bugs in the usual place.

10 Likes

It’s working slower on my Lo-DPI screen but I’m sure it will get better

Hi, could you provide more details about your HW configuration and settings of the eeschema (canvas using OpenGL/Cairo, antialiasing settings?)

Tom

Sure,

I’m running on an i7 3520m, integrated graphics, 16GB Ram, Debian testing.

Both canvases are slower, the fallback one is closer in performance to the old canvas (better).
In both canvases using Subpixel antialiasing (High Quality). Tried changing to No antialiasing but performance appears to be the same.

Will try if a release build changes anything.

Application: kicad
Version: (6.0.0-rc1-dev-884-g711b27824-dirty), debug build
Libraries:
wxWidgets 3.0.4
libcurl/7.61.0 GnuTLS/3.5.19 zlib/1.2.11 libidn2/2.0.5 libpsl/0.20.2 (+libidn2/2.0.4) libssh2/1.8.0 nghttp2/1.32.0 librtmp/2.3
Platform: Linux 4.18.0-1-amd64 x86_64, 64 bit, Little endian, wxGTK
Build Info:
wxWidgets: 3.0.4 (wchar_t,wx containers,compatible with 2.8) GTK+ 2.24
Boost: 1.62.0
OpenCASCADE Community Edition: 6.9.1
Curl: 7.61.0
Compiler: GCC 8.2.0 with C++ ABI 1013

Build settings:
USE_WX_GRAPHICS_CONTEXT=OFF
USE_WX_OVERLAY=OFF
KICAD_SCRIPTING=ON
KICAD_SCRIPTING_MODULES=ON
KICAD_SCRIPTING_WXPYTHON=OFF
KICAD_SCRIPTING_ACTION_MENU=ON
BUILD_GITHUB_PLUGIN=ON
KICAD_USE_OCE=ON
KICAD_USE_OCC=OFF
KICAD_SPICE=OFF

How about “glxinfo” output? It’s really strange that the GL canvas is slower than Cairo.

Here is it:

(Note that Pcbnew works fine)

The operations that feel sluggish are zoom/panning, moving objects, drawing a wire.
