I’m currently designing an digital/analog pcb. I have differents types of grounds (3 digital) and 2 analog). I would like to create a more different ground symbol in order to adress my needs in eeschema. How can I do that ?

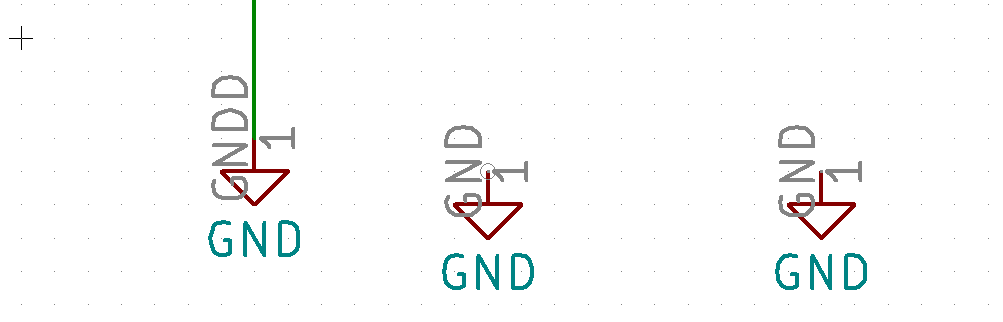

And for these symbols to work you need to make sure that in pin properties (right click the pin) you DESELECT the ‘Visible’ option in ‘Schematic Properties’… otherwise they don’t work.
