Generate circular area/zone

External Plugins
1

Hi all,

Please find a tools to create circular zone in pcbnew.

  • Select a component. This composent will be used as center of the
    circular zone. If no component is selected, the origin (0,0) will be
    used as center.

  • Select “Create a circular zone” in the Tools menu, choose the
    radius and the type of zone (normal or keep out).

1415×669 71.6 KB

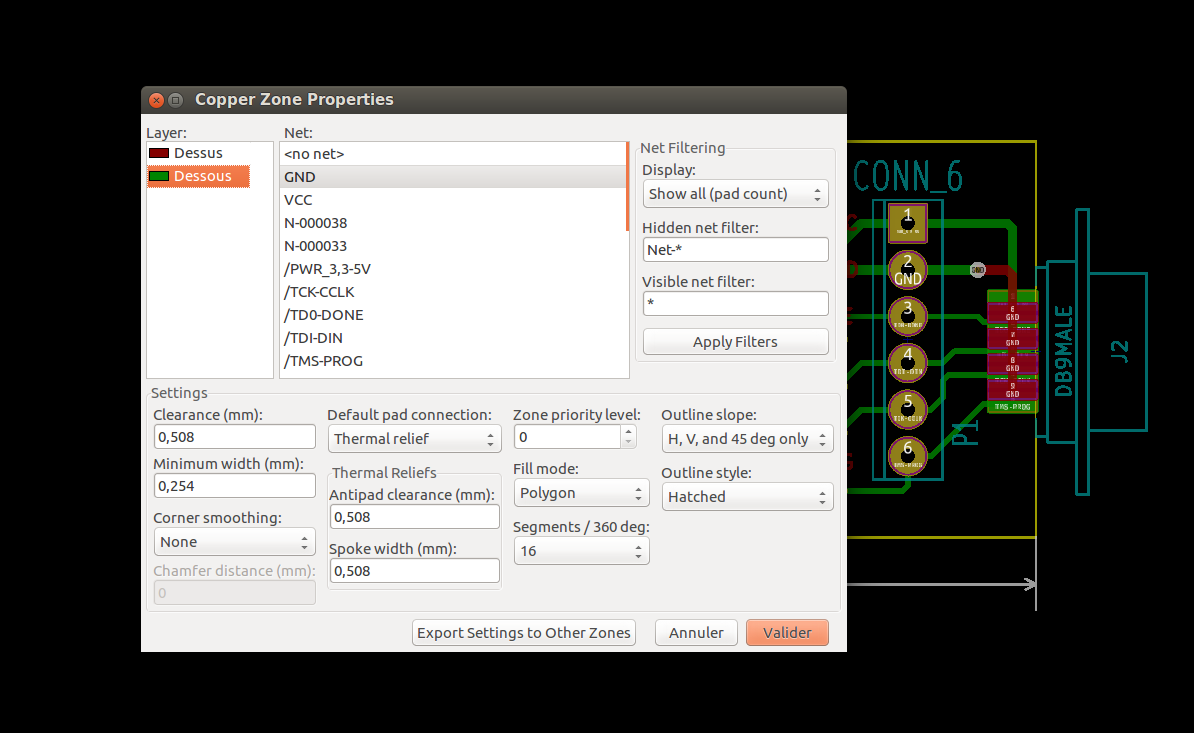

  • A circular zone will be created. Select it to change properties:

1071×577 49.5 KB

1194×733 87.8 KB

  • Refill the area (B hotkey) then the circular zone is ready.

1138×637 51.3 KB

This python plugin is available in https://github.com/jsreynaud/kicad-action-scripts

4 Likes
2

is the number of segments still restricted by the zone code (ie. 16/32 per 90deg) or does your custom zone outline enable more segments?

3

For the moment I put a static number of segments to 100… It’s arbitrary :slight_smile:

1 Like
4

Can you make that value accessible via the GUI upon creating the zone please?
:heart_eyes:

1 Like
5

Yes, it’s on github now… You can choice the value you want in the interface directly…

2 Likes
