Curved exposed copper traces

Layout
1

Hello,

I would like to draw the curved exposed copper traces. I know that I can use polygon planes to expose copper, but it looks ugly.

Additionally, is it possible to draw the curved traces? I want to draw a sinus.

Thanks!

2

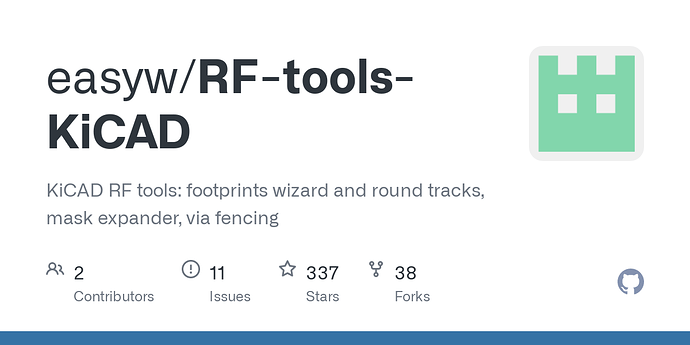

You might find the following set of plugins helpful for curved track, exposed copper RF designs. The current nightly builds (5.99) also allow track rounding without needing a plugin. (Usual warning about nightly builds apply)

1 Like
